Mini Excavator vs Mini Skid Steer Retaining Wall Utah
Key Takeaways
- Most Utah retaining wall projects need both machines for one day. The mini excavator digs the footing trench. The mini skid steer moves 3,000+ lb block pallets from the driveway to the wall site. Different jobs, same project.
- A 3,500 lb mini excavator ($350/day) digs a 12-inch-wide footing trench to the 30-inch frost-line depth Utah Valley code requires.
- A compact track loader with pallet forks ($175-$300/day) moves full block pallets across soft ground without tearing up your yard.
- Alpine Equipment Repair includes pallet forks free with every skid steer rental. That is the block-moving attachment built into the daily rate.
- Track undercarriage beats wheels on Utah clay. The $0 price difference at Alpine pays for itself in the lawn repair you will not need.
- Retaining walls over 4 feet tall (footing to top) require a permit and licensed engineer design in most Utah cities.
- Renting both machines for one day ($525-$650) still costs a fraction of hiring a contractor ($2,500-$5,000+ for a 50-ft wall).
You are standing in your driveway in Lehi staring at five pallets of retaining wall block, each weighing 3,200 lbs. The wall site is 80 feet away, downhill, across spring-soft clay. You need a trench dug to 30 inches. And you are trying to figure out which one machine handles everything.
The honest answer: these machines do different jobs on the same project. A mini excavator digs the footing trench with precision depth control and 360-degree rotation. A mini skid steer with pallet forks moves those 3,000+ lb block pallets from your driveway to the build site without destroying your lawn. The real question is not which one. It is whether your project needs both.
Most projects do. For one day.
The Honest Answer: You Probably Need Both (for One Day)
Here is the decision framework. Three questions tell you what to rent.
Decision Heuristic
| Your Situation | What to Rent | Why |
|---|---|---|
| Wall taller than 4 ft | Mini excavator required | Engineered footing depth demands precision trenching to 30+ inches |
| Wall 3 ft or shorter, block delivery point is 50+ ft from wall site | Mini excavator + mini skid steer | Excavator digs, skid steer moves pallets across the yard |
| Wall 3 ft or shorter, block delivered right at the wall site | Mini excavator only | Move blocks short distances by hand or dolly |
| Backyard access through a 36-inch gate only | Walk-behind skid steer + hand digging or mini excavator (if gate allows 48 in) | The GIANT SK252 walk-behind skid steer fits through 36-inch openings |
The math works because Alpine rents both a 3,500 lb mini excavator ($350/day) and a GIANT G950T compact track loader ($175/day) with pallet forks included free. That is $525 total for one day with both machines and the attachment you need to move block.
Call (801) 701-7394 to build a rental package for your wall project. Alpine's technicians can help you match machines to your site conditions.
What the Mini Excavator Does on a Retaining Wall Project
The mini excavator is the digging machine. If your project involves cutting a footing trench, it is the right tool for that part of the job.
Footing Trench Excavation
A 3,500 lb mini excavator with a 12-inch bucket digs a footing trench to exact depth specifications. In Utah Valley (American Fork, Lehi, Pleasant Grove, Lindon, Orem, Provo), the frost line is 30 inches. Your footing trench needs to reach at least that depth.
What makes an excavator better than a skid steer for this:
- 360-degree rotation. The cab swings to dig along the wall line without repositioning the tracks. A skid steer cannot do this.
- Precise depth control. The boom and stick give you fine adjustment to hit exactly 30 inches, not 24, not 36.
- 12-inch bucket width. Standard footing width for segmental retaining wall block. One pass, correct width.
- Reach from one position. A 3,500 lb mini excavator reaches 8-10 feet from the machine, meaning fewer repositions along a long wall.
Backfill Behind the Wall
After the block is placed and drainage gravel is behind the wall, the excavator backfills soil over the gravel. For walls over 30 feet long, this saves hours compared to shoveling.
What Size Mini Excavator for a Retaining Wall?
| Machine Size | Best For | Alpine Daily Rate |
|---|---|---|
| 3,500 lb mini excavator | Residential retaining walls, backyard access, standard footing trenches | $350/day, $1,050/week |
| 8,000 lb mini excavator | Large walls (100+ ft), deep footings, heavy backfill, commercial projects | $450/day, $1,350/week |
The 3,500 lb unit handles 90% of residential retaining wall projects in Utah County. Rent the 8,000 lb machine when your wall exceeds 100 linear feet or the engineered plans call for a footing deeper than 36 inches.
What the Mini Skid Steer Does on a Retaining Wall Project
The mini skid steer is the material-moving machine. Block delivery trucks drop pallets on your driveway. The wall is in your backyard. Something has to bridge that gap.
Block Transport: Driveway to Wall Site
A standard pallet of retaining wall block weighs 2,800 to 4,000 lbs. You are not wheelbarrowing that.
| Machine | Rated Capacity | Handles Full Pallet? | Daily Rate |
|---|---|---|---|
| GIANT G950T compact track loader | ~2,000 lb | Split pallets into halves | $175/day |
| Cat 279D / Bobcat T630 track skid steer (2,300 lb capacity) | 2,300 lb | Most pallets, yes | $300/day |
| Track skid steer (2,500 lb capacity) | 2,500 lb | Yes, standard pallets | $350/day |
| Track skid steer (3,100 lb capacity) | 3,100 lb | Yes, any pallet | $375/day |
Alpine includes pallet forks free with every skid steer rental. No extra daily charge for the attachment. That is the block-moving setup built into the rate.

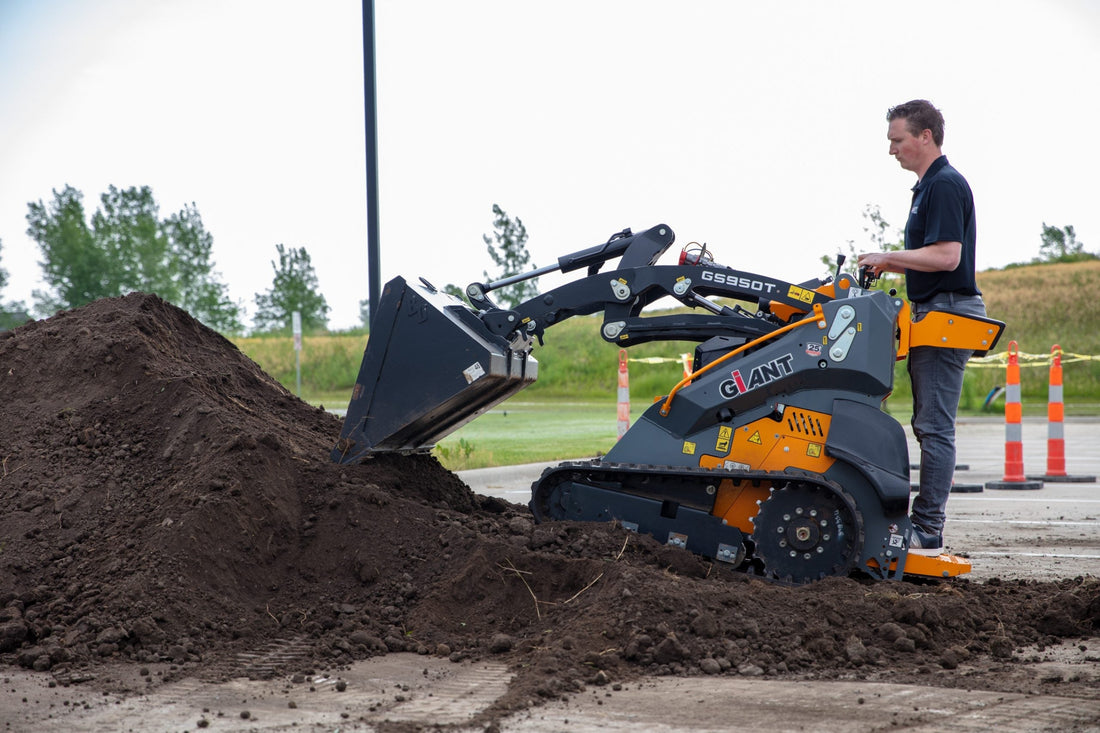

The GIANT G950T at $175/day is the budget option. It handles split pallets and works well for projects with 1-3 pallets of block. For 5+ pallets, step up to the 2,300 lb capacity Cat 279D or Bobcat T630 at $300/day and move full pallets without splitting.
Gravel and Base Material Spreading
Switch from pallet forks to a bucket (also available from Alpine) and the skid steer spreads crush-and-run gravel for the footing base. Faster than wheelbarrowing for any distance over 50 feet.
When a Walk-Behind Skid Steer Is Enough
The GIANT SK252 walk-behind skid steer at $125/day is the right call when:
- Your only backyard access is a 36-inch gate
- The wall is under 20 feet long (1-2 pallets of block)
- You are splitting pallets and carrying smaller loads
- Budget is tight and you are willing to make more trips
At half the cost of a full-size unit, it is a practical choice for small walls with tight access.
Questions to Ask Any Rental Company Before Renting for a Retaining Wall
Whether you rent from Alpine or a competitor, ask these before you book:
- Are pallet forks included or an extra charge? At Alpine, pallet forks come free with every skid steer. Some companies charge $50-$100/day extra.
- Is the machine track or wheel? For Utah clay, you want tracks. Wheels leave ruts that cost more to fix than the rental itself.
- Can I rent both machines for one day? Some yards require multi-day minimums on each machine. Alpine's minimum is 4 hours per unit.
- What happens if the machine breaks down on site? Local yards like Alpine can swap same-day. National chains may take 24-48 hours.
- Do you deliver both machines at once? One delivery trip saves you a second delivery fee.
Fair disclosure: National chains like Sunbelt and United Rentals carry larger inventories and may have more machine availability during peak season. If Alpine's fleet is booked, they are a reasonable alternative — just confirm pallet fork pricing and undercarriage type before you sign.
Cost-Per-Block Math: Equipment Rental vs. Wheelbarrow Labor
Here is where renting equipment gets obvious. Take a real scenario: a 50-foot retaining wall, 3 feet tall, requiring 5 pallets of block.
Scenario: 50-ft Wall, 3 ft Tall, 80 ft From Driveway to Wall Site
| Approach | Equipment Cost | Estimated Time | Notes |
|---|---|---|---|
| Wheelbarrow only (no equipment) | $0 | 12-16 hours across 2 days | Your back, your wheelbarrow, 16,000 lbs of block moved by hand |
| Mini skid steer only (1 day) | $175-$300 | 6-8 hours (1 day) | Machine moves block, hand-dig the footing trench |
| Mini excavator + mini skid steer (1 day each) | $525-$650 | 8-10 hours (1 day) | Both jobs mechanized. Done in one day. |
| Hire a contractor | N/A | N/A | $2,500-$5,000+ for a 50-ft wall installed |
The numbers: 5 pallets at 3,200 lbs each = 16,000 lbs of block. At roughly 50 lbs per block, that is 320 blocks. Moving 320 blocks by wheelbarrow across 80 feet of soft ground takes 80-100 wheelbarrow loads minimum.
With a skid steer and pallet forks (included free) that same move is 5-10 trips, done in under an hour.
The equipment rental pays for itself in time. One day with both machines ($525-$650) finishes a project that takes two full days by hand. And your back still works on Monday.
Track vs. Wheel Skid Steer for Retaining Walls on Utah Clay
This is not a close call in Utah. Tracks win.
Why Tracks Almost Always Win for Wall Projects in Utah
Utah Valley clay retains moisture for 2-4 weeks after spring runoff and irrigation. March through June, most residential yards in American Fork, Pleasant Grove, Lehi, and Lindon have soft, wet clay under the topsoil.
| Factor | Track Skid Steer | Wheel Skid Steer |
|---|---|---|
| Ground pressure (PSI) | 3-5 PSI | 25-35 PSI |
| Lawn damage on wet clay | Minimal — weight distributed across track surface | Severe — ruts, torn turf, compacted wheel paths |
| Traction on slopes | Excellent — full track contact | Poor — wheels spin on wet grade |
| Pallet stability on soft ground | Stable — less rocking while loaded | Unstable — can tip forward on uneven soft ground |
| Cleanup after project | Minimal touch-up | Re-sod or re-seed wheel ruts |
A wheel skid steer on wet Utah clay leaves 4-inch-deep ruts across your yard. Fixing those ruts costs $200-$500 in sod and topsoil. The track skid steer avoids the problem entirely.
Alpine's fleet is track-based. The GIANT G950T, Cat 279D, and Bobcat T630 are all track machines. You get the right undercarriage for Utah conditions at the standard daily rate.
Retaining Wall Footing Depth in Utah: Code Requirements by City
Before you rent any equipment, know what depth you are digging to and whether you need a permit.
Frost-Line Footing Depth
The frost line across Utah Valley is 30 inches. This applies to American Fork, Lehi, Pleasant Grove, Lindon, Orem, and Provo. Your retaining wall footing must extend to or below this depth to prevent frost heave from shifting the wall.
A 3,500 lb mini excavator reaches 30 inches in a single bucket pass. Hand digging a 30-inch-deep trench across 50 feet takes an experienced crew 4-6 hours. The excavator does it in under 2 hours.
When Permits and Engineering Are Required
| Wall Height (Footing to Top) | Permit Required? | Engineer Required? |
|---|---|---|
| Under 4 ft, no surcharge load | Most cities: No | No |
| 4 ft or taller | Yes, in most Utah cities | Yes — licensed engineer design required |
| Any height, supporting a driveway or structure above | Varies by city | Yes — surcharge load requires engineering regardless of height |
| Tiered walls (multiple walls close together) | Check with city | Likely yes — total retained height may trigger the 4 ft threshold |
The 4-foot rule matters for equipment selection. Walls over 4 feet require engineered footings that are often wider and deeper than standard. That means the mini excavator is not optional — it is required. You cannot hand-dig to engineered specifications and expect it to pass inspection.
Check with your city building department before you start. American Fork, Pleasant Grove, Lehi, Lindon, Orem, and Provo all follow IRC R301.2 (adopted by Utah), but permit processes and fees vary.
Equipment Access: What Fits Through Your Gate?
Access constraints determine what you can rent. Measure your gate before you call.
Gate Width to Equipment Options
| Gate Width | Equipment That Fits | Daily Rate | Block-Moving Capability |
|---|---|---|---|
| 36 inches | Walk-behind skid steer (GIANT SK252) | $125/day | Split pallets, multiple trips |
| 48 inches | 3,500 lb mini excavator, GIANT G950T compact track loader | $175-$350/day | Full capability with compact machines |
| 72+ inches | Any compact track loader, any mini excavator, full-size skid steer | $175-$450/day | Full pallets, maximum efficiency |
No gate at all? If equipment has to enter through the house or over a fence, a walk-behind skid steer at 34 inches wide is likely your only mechanized option. The rest is hand labor.
48-inch gate is the sweet spot. Both the 3,500 lb mini excavator and the GIANT G950T fit through a standard 4-foot backyard gate. That gives you mechanized digging and mechanized block transport for under $525/day.
Ground Protection and Lawn Preservation
Even track machines can mark up a finished lawn. A few precautions save repair costs.
- Plywood sheets (3/4-inch, 4x8). Lay them on the lawn as a driving path. The machine rolls on plywood, not grass. Costs $30-$50 per sheet at any Utah lumber yard.
- Avoid turning on grass. Drive forward and back. Pivot turns — even on tracks — tear turf.
- Work when the ground is driest. Early morning dew and afternoon irrigation leave clay soft. Mid-morning to early afternoon is the firmest window.
- Plan your route. One path in, one path out. Every trip across the same turf compounds damage.
- Ground protection mats. For larger projects, rubber mats distribute weight better than plywood. Alpine can advise on sourcing.
Real Project Scenarios
Scenario 1: Lehi Backyard Retaining Wall — Homeowner DIY
The project: 40-foot terraced wall, 3 feet tall, along the back property line. 48-inch gate access. 4 pallets of block on the driveway, 60 feet from the wall site. Spring project, clay soil still wet from snowmelt.
Equipment rented:
- GIANT G950T compact track loader with pallet forks (included free): $175/day
- 3,500 lb mini excavator: $350/day
- Delivery (both machines): $165/hour x estimated delivery time
How it works: Excavator trenches the 40-foot footing to 30 inches in about 90 minutes. While the homeowner starts laying gravel base, the G950T with pallet forks shuttles split pallets of block from the driveway to the wall site. Both machines fit through the 48-inch gate. Total equipment cost: $525 plus delivery. Project done in one long day.
Scenario 2: Pleasant Grove Hillside — Contractor Job
The project: 80-foot retaining wall, 5 feet tall (permit and engineering required), steep hillside grade. Wide driveway access, no gate restrictions. 8 pallets of heavy block. Engineer-specified footing: 36 inches deep, 24 inches wide.
Equipment rented:
- 8,000 lb mini excavator: $450/day
- Cat 279D track skid steer (2,300 lb capacity) with pallet forks (included free): $300/day
- Rental period: 2 days
How it works: The 8,000 lb excavator handles the deeper, wider engineered footing and manages the slope grade better than the 3,500 lb unit. The Cat 279D moves full pallets uphill on tracks without spinning. Two-day rental at $1,500 total. Contractor charges the homeowner $6,000-$8,000 for the finished wall.
Scenario 3: American Fork Small Wall — Weekend Warrior
The project: 20-foot garden wall, 2 feet tall. Only access is a 36-inch side gate. 2 pallets of lightweight block on the driveway.
Equipment rented:
- Walk-behind skid steer (GIANT SK252): $125/day
How it works: At 2 feet tall with a 20-foot run, hand-digging the shallow footing trench is practical. The SK252 with forks shuttles split pallets through the 36-inch gate. Total equipment cost: $125. Done in a half day.
Frequently Asked Questions About Retaining Wall Equipment Rental
Do I need a mini excavator or skid steer for a retaining wall?
Most projects need both. The mini excavator digs the footing trench to the required 30-inch frost-line depth in Utah Valley. The skid steer with pallet forks moves block pallets from the driveway to the build site. If your wall is under 3 feet tall and block delivery is right at the wall location, a mini excavator alone may be enough.
What equipment do I need to build a retaining wall?
The core equipment list: a mini excavator for trenching ($350/day), a skid steer or compact track loader with pallet forks for block transport ($175-$300/day), a plate compactor for base material, a level, and a dead-blow mallet. For walls over 4 feet, add whatever the engineer specifies for drainage and reinforcement.
Can a mini skid steer move pallets of retaining wall block?
Yes. A standard block pallet weighs 2,800 to 4,000 lbs. A 2,300 lb capacity track skid steer (Cat 279D or Bobcat T630) handles most pallets at full weight. The GIANT G950T at $175/day handles split pallets. Alpine includes pallet forks free with every skid steer rental.
How deep should a retaining wall footing be in Utah?
At least 30 inches in Utah Valley. That is the frost line for American Fork, Lehi, Pleasant Grove, Lindon, Orem, and Provo. Engineered walls may require deeper footings depending on wall height and soil conditions. A 3,500 lb mini excavator reaches 30 inches in a single bucket pass.
Do I need a permit for a retaining wall under 4 feet in Utah?
In most Utah cities, retaining walls under 4 feet (measured from the bottom of the footing to the top of the wall) do not require a permit or engineering. However, if the wall supports a driveway, structure, or additional surcharge load, engineering may be required regardless of height. Check with your city building department before starting.
Is a plate compactor necessary for retaining wall base?
Yes. Compacting the gravel base before laying the first course is critical for wall stability. An uncompacted base settles unevenly and the wall leans. Alpine rents plate compactors — contact us at (801) 701-7394 for current pricing.
What size mini excavator for a retaining wall footing trench?
A 3,500 lb mini excavator ($350/day) handles 90% of residential retaining wall footings. It digs a 12-inch-wide trench to 30+ inch depth with a standard bucket. Rent the 8,000 lb unit ($450/day) for walls over 100 feet long, engineered footings deeper than 36 inches, or commercial-scale projects.
How much does it cost to rent a mini excavator and skid steer for a weekend?
At Alpine Equipment Repair, a 3,500 lb mini excavator plus a GIANT G950T compact track loader (with pallet forks included free) rents for $525/day total. Call (801) 701-7394 for multi-day and weekend rates. Minimum rental is 4 hours.
Can I build a 4-foot retaining wall without engineering in Utah?
It depends on how you measure. If the wall is exactly 4 feet from footing to top, most Utah cities require a permit and licensed engineer design. Walls retaining additional loads (a driveway, a patio, a structure above) may need engineering at any height. The 4-foot threshold is strictly enforced in American Fork, Lehi, Pleasant Grove, and most Utah County cities.
What is the best equipment for moving retaining wall blocks from driveway to backyard?
A compact track loader or skid steer with pallet forks. The GIANT G950T ($175/day) moves split pallets through 48-inch gates. A Cat 279D or Bobcat T630 ($300/day) handles full 3,000+ lb pallets. Alpine includes pallet forks free with all skid steer rentals, so the block-moving attachment is built into the daily rate.
Track vs. wheel skid steer for retaining wall on soft ground?
Tracks. In Utah, clay soil stays wet for 2-4 weeks after spring runoff. Track skid steers distribute weight at 3-5 PSI versus 25-35 PSI for wheels. That means minimal lawn damage on soft ground. Wheel skid steers leave deep ruts that cost $200-$500 to repair. Alpine's fleet is track-based.
Does Alpine include pallet forks with skid steer rental?
Yes. Pallet forks are included free with every skid steer and compact track loader rental. No separate attachment fee. That is the block-moving setup you need for retaining wall projects, built into the daily rate.
Get the Right Equipment Package for Your Retaining Wall
Most retaining wall projects in Utah County need two things: a machine that digs and a machine that moves. Rent both for one day and finish the project instead of spending a weekend with a wheelbarrow and a sore back.
The starter package: 3,500 lb mini excavator ($350/day) + GIANT G950T compact track loader ($175/day) with pallet forks included free. Total: $525/day.
Tight backyard access? The GIANT SK252 walk-behind skid steer fits through 36-inch gates at $125/day.
Bigger wall, bigger machines? Full-size track skid steers from $300/day with pallet forks included.
Alpine Equipment Repair is in American Fork, serving all of Salt Lake County and Utah County. We deliver equipment to Lehi, Pleasant Grove, Lindon, Provo, and everywhere in between. Delivery is $165/hour. Every machine is inspected by our in-house technicians before it leaves the yard.
Call (801) 701-7394 to build your retaining wall equipment package. Tell us your wall length, height, and access width. We will match the right machines to your project.
