Kubota V3800-DI Industrial Engine: Service, Parts & Specs

By the Alpine Equipment service team · Reviewed by Alpine's Kubota-certified industrial engine technicians · American Fork, UT · Updated July 2026

Key Takeaways

• The Kubota V3800 is a 3.769-liter (230 cu in), four-cylinder, water-cooled diesel with a 100 × 120 mm bore and stroke, built in rated outputs from 74.0 kW (99.2 hp) to 96.4 kW.
• It is a family, not a single engine. Five service profiles span EPA Tier 3 with no aftertreatment through EPA Tier 4 / EU Stage V with DOC, DPF, and SCR.
• Whether it needs DEF depends entirely on the variant. The Tier 3 and interim-Tier-4 versions use none. The SCR versions do. Read the nameplate before you order anything.
• The numbers a technician asks for first: firing order 1-3-4-2, cold valve clearance 0.23–0.27 mm (0.009–0.011 in), compression 19:1, oil change every 500 hours on the DI spec, valve check every 1,000 hours.
• Capacities are not universal. Kubota's bare-engine figures are 13.2 L of oil and 9.0 L of coolant — but Kubota's own SVL95-2s lists 11 L with filter, because host machines re-pan and re-radiate. Verify against your machine's manual by serial number.
• You will find it inside other people's machines — Bobcat skid steers and track loaders, Kubota SVL track loaders, the Takeuchi TL12V2, Gehl and Mustang track loaders, and a wide range of gensets, compressors, and power units.
• Where to get it serviced: Alpine Equipment is a Kubota Industrial Engine Elite Dealer running factory diagnostic tooling, serving Salt Lake County and Utah County in-shop and in the field, with genuine Kubota parts shipped nationwide.

---

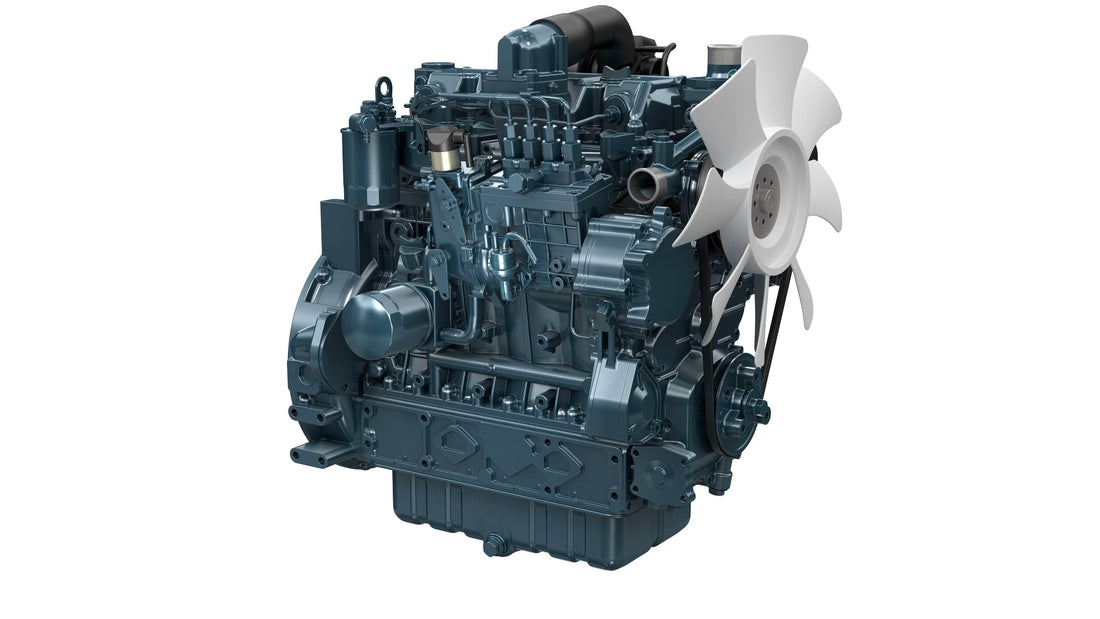

The Kubota V3800 is a 3.769-liter, four-cylinder, water-cooled, direct-injection diesel built in rated outputs from 74.0 kW (99.2 hp) to 96.4 kW, spanning EPA Tier 3 through EPA Tier 4 and EU Stage V. Most people meet it not as a Kubota purchase but as the engine already bolted into a Bobcat, a Takeuchi, a Gehl, or a generator skid. The one thing to know before you order a part or book a repair: there are five materially different V3800 variants, and they do not share a service profile.

That is where most V3800 searches go wrong. A spec table that lists "V3800" and one horsepower number will send you to the wrong filter, the wrong oil quantity, and sometimes the wrong aftertreatment assumption entirely. Alpine Equipment — the #1 Kubota Industrial Engine service & parts center in the U.S., and a Kubota Industrial Engine Elite Dealer. We service and supply genuine parts for the V3800 regardless of the badge on the machine around it, in-shop in American Fork and in the field across Utah County and Salt Lake County. If you already know what you need, request a quote or talk to a Kubota engine specialist.

---

What the Kubota V3800 Is

The Kubota V3800 is a vertical, water-cooled, four-cycle, four-cylinder industrial diesel of 3.769 liters, sold by Kubota Engine America to equipment manufacturers rather than to end users. Depending on generation it uses either mechanical direct injection (-DI-) or common-rail injection (-CR-), with rated output from 74.0 kW to 96.4 kW.

Where you will find it: compact track loaders and skid steers in the 100-horsepower class, generators and light-plant sets, air compressors, pumps, horizontal drills, and forestry and utility power units — almost always wearing another manufacturer's paint.

---

Kubota V3800 Specs at a Glance

These are the constants — the figures that hold across the whole V3800 family. What changes between variants is in the next section; what changes between host machines is in the fluids section below.

Spec	Value
Configuration	Vertical, water-cooled, 4-cycle, 4-cylinder diesel
Displacement	3.769 L / 3,769 cc (230.0 cu in)
Bore × stroke	100.0 × 120.0 mm (3.937 × 4.724 in)
Combustion	Direct injection (E-CDIS); common rail on -CR- and later variants
Compression ratio	19.0:1 (V3800-DI-T-E3)
Firing order	1-3-4-2
Valve clearance (cold)	0.23–0.27 mm (0.009–0.011 in)
Rotation	Counter-clockwise viewed from the flywheel
Max bare speed / idle	2800 rpm / 775–825 rpm
Starting	Cell starter with air heater on the DI spec (the IDI siblings use glow plugs)
Electrical	12 V, 3.0 kW starter; 12 V alternator; battery 400 CCA minimum
Dry weight	275 kg (606 lb) on the Tier 3 DI-T, rising to 423 kg (933 lb) on the Stage V TIE5HB

Rated output, torque, and emissions equipment all move with the variant, so they are deliberately not on this table. Figures come from Kubota's operator's manual and Kubota Engine America's published engine data; confirm against the manual for your engine serial number before machining, torquing, or ordering.

---

Kubota V3800 Variants Decoded

Search results treat "V3800" as one engine. Kubota built it as a family, and the differences are not cosmetic — they change the aftertreatment, the fluids you have to carry, and what a technician needs to plug into it.

Reading the suffix. Kubota's designations are legible once you know the pattern: DI = direct injection, CR = common rail, T = turbocharged, I = inter-cooled / after-cooled, E3 / E4 / E5 = the EPA Tier 3, Tier 4, and Stage V emissions generation, F = Final. Trailing letters and numbers are build and revision codes. Match the full string on the engine nameplate, not just "V3800." Kubota publishes its own guide to reading the model number, and the emissions tiers themselves are the EPA's — the nonroad diesel standards are what forced each step in the table below.

Variant	Rated output	Emissions	Aftertreatment	DEF?	What it changes for service
V3800DI-T-E3B	74.0 kW / 99.2 hp @ 2600	EPA/CARB Tier 3, EU Stage IIIA	None	No	Simplest of the family. No DPF, no SCR, no DEF. Mechanical fuel system, symptom-based diagnosis.
V3800-CR-T-E4B	74.5 kW / 99.9 hp @ 2600	EPA/CARB interim Tier 4, EU Stage IIIB	DOC + DPF	No	Common rail arrives. DPF regen and ash service arrive. Still no DEF tank to fill.
V3800-TIEF4	86.4 kW / 115.9 hp @ 2600	EPA/CARB Tier 4	DOC + DPF + SCR	Yes	SCR added. DEF quality, DEF injector, and NOx sensors become live service items.
V3800-CR-TIEF4H	96.4 kW / 130.9 hp @ 2400	EPA/CARB Tier 4, EU Stage V	DOC + DPF + SCR	Yes	Top of the Tier 4 range. Highest output, full aftertreatment train.
V3800-TIE5HB-KEA-1 (current)	96.4 kW / 129.3 hp @ 2400	EPA/CARB Tier 4, EU Stage V	DOC + DPF + SCR, external cooled EGR, common rail	Yes — 20 L DEF tank kit	The current top of range. Extended DPF ash interval; DEF capacity is specified as a kit.

Whether a Kubota V3800 needs DEF depends entirely on the variant. The Tier 3 V3800DI-T-E3B and the interim-Tier-4 V3800-CR-T-E4B use no DEF at all. The V3800-TIEF4, V3800-CR-TIEF4H, and V3800-TIE5HB run SCR and do require it. Two machines on the same job site, both with "V3800" on the block, can have completely different fluid and filter requirements.

The acronyms, in plain English. A DOC (diesel oxidation catalyst) is a catalytic converter for a diesel. A DPF (diesel particulate filter) traps soot and periodically burns it off — that burn-off is a regeneration, or "regen." SCR (selective catalytic reduction) sprays DEF (diesel exhaust fluid, a urea-and-water solution) into the exhaust stream to break down nitrogen oxides, which is why an SCR engine needs a DEF tank kept full and an engine without SCR has no DEF fill at all. Direct injection means a mechanical pump sprays fuel straight into the cylinder. Common rail means an electronically controlled pump holds fuel at very high pressure in a shared rail and a computer decides when each injector fires. That one difference is why a mechanical V3800 is diagnosed by symptom and a common-rail V3800 is diagnosed with software.

One more trap: OEMs print their own rendering of the string. Takeuchi's spec page for the TL12V2 lists V3800-TIF4B, while aggregators render the same engine as V3800-TIEF4B. Quote the string on your nameplate — and if you are not certain which engine you have, our guide to identifying the Kubota engine in your equipment shows where the model and serial plates live.

---

Which Machines Run a Kubota V3800

Host applications are where bad information travels fastest, because parts sellers publish brand lists nobody sources. Every row below carries a source strength; anything we could not source to an OEM or dealer spec sheet is not here at all.

Host machine	V3800 variant named	Source strength
Bobcat S750 / S770 / S850 / T750 / T770 / T870 / A770	V3800-DI-T-E3 (74 kW / 99 hp @ 2600)	Strong — trade press spec listings plus reman fitment catalogs keyed to Bobcat part numbers
Kubota SVL90-2 / SVL95-2s / SVL97-2 track loaders	V3800-CR-TE4 (interim Tier 4) → V3800-CR-TIEF4 on Tier 4 Final, with DPF, SCR, and a DEF tank	Strong — Kubota dealer spec listings and Kubota USA OEM parts catalog (DEF tank assemblies listed under the SVL95-2S)
Takeuchi TL12V2 compact track loader	Takeuchi's own spec page names "Kubota / V3800-TIF4B," 111.3 hp @ 2400, 385 Nm @ 1500	Strong — Takeuchi US official spec page
Gehl CTL85 / Mustang MTL325 track loaders	V3800DI-T, Kubota parts list P/N 196110	Strong — Kubota illustrated parts list
Caterpillar 272D2 / 299D2 / 299D3	Commonly cross-referenced to the V3800 badged as Cat C3.8	Medium — asserted by reman and parts trade sources, not printed on a Caterpillar spec sheet. Verify by block casting and serial number before ordering.
Gensets, air compressors, pumps, horizontal drills, forestry and utility power units	V3800 industrial and BG configurations	Strong for the category, not for specific models. Kubota names power units, drills, forestry, agricultural, excavator and air-compressor markets for the current TIE5HB; OEM compressor packages are built on it.

Commonly assumed, but not a V3800

Two pairings show up constantly in forum threads and aftermarket listings, and both are wrong:

• SkyTrak telehandlers — 6036, 8042, 10054, 12054 — do not run a Kubota V3800. Tier 4 Final SkyTrak models are powered by the Cummins QSF3.8 or Deutz. JLG telehandlers in the same class are Cummins or Deutz as well.
• The Vermeer BC1500 brush chipper does not run a V3800. Its published engine options are the Cummins QSF3.8L Tier 4 Final, a PSI 5.7L gas, and the John Deere 4045H. Vermeer's Kubota-powered machines are in the small-displacement classes, not the 3.8-liter.

Aftermarket sellers also list Bomag, Dieci, Merlo, and Jacobsen against the V3800. Those brands may use Kubota power somewhere in their lineups, but no model-level spec sheet backs the specific claims, so we will not print model numbers we cannot source. A brand list is a category signal, not a fitment.

The practical upshot: the badge on the machine tells you almost nothing about who can service the engine inside it. A Kubota tractor dealer generally will not take your Bobcat, and a Bobcat dealer is not tooled for the Kubota engine inside it. Alpine services the engine either way.

---

Fluids and Capacities

Fluid	Bare-engine figure	Notes
Engine oil	13.2 L (3.49 US gal)	Engine-standard oil pan, V3800-DI-T-E3
Coolant	9.0 L (2.38 US gal)	Standard radiator only
Oil specification	API CF or better (CF-4 / CG-4 / CH-4 / CI-4 on low-sulfur fuel)	SAE 10W-30 or 15W-40 for 0–25 °C; SAE 30 above 25 °C; 10W below 0 °C. TBN of 10 or higher on high-sulfur fuel
Coolant type	50/50 genuine Kubota long-life coolant and clean water	Two-year service life
Fuel	Diesel No. 2-D	Ultra-low-sulfur required on all aftertreatment-equipped variants

Now the caveat every spec aggregator leaves out. Those are Kubota's bare-engine numbers, for the engine as Kubota ships it. Host manufacturers re-pan and re-radiate constantly — Kubota's own SVL95-2s lists 11 L (2.9 US gal) of engine oil with filter, nearly two and a half liters below the bare-engine figure for the same family. Neither number is wrong; they describe different things.

Treat 13.2 L and 9.0 L as the engine-level reference, then fill to the dipstick against your machine's own manual, matched to its serial number. A capacity published without that context is how crankcases get overfilled — and an overfilled crankcase on a DPF-equipped variant is a fast route to oil dilution and soot problems.

---

Kubota V3800 Service Intervals

The baseline schedule below is Kubota's own for the mechanical Tier 3 V3800-DI-T-E3. The emissions variants inherit all of it and add items on top.

Interval	Item
First 50 hours	Initial engine oil and filter change; check fuel pipes and clamp bands
Every 50 hours	Check fuel pipes and clamps; drain the water separator
Every 250 hours	Clean air-cleaner element; clean fuel filter; check battery electrolyte, fan-belt tension, radiator hoses and clamps, intake-air line
Every 500 hours or 1 year	Change engine oil (DI spec) — note the IDI siblings are on a 250-hour oil interval
Every 500 hours	Replace oil filter cartridge and fuel filter cartridge; clean fuel-tank sediment and water jacket; replace fan belt; clean water separator
Every year	Replace air-cleaner element (or after six cleanings)
Every 1,000 hours	Check valve clearance — 0.23–0.27 mm cold
Every 1,500 hours	Check injection-nozzle pressure; check turbocharger (dealer)
Every 3,000 hours	Check injection pump and injection timer (dealer)
Every 2 years	Change coolant; replace battery, radiator hoses, fuel pipes, intake-air line, fan belt

Aftertreatment adders, DPF and SCR variants only:

• DPF ash cleaning at roughly every 3,000 hours. Regeneration burns off soot; ash does not burn off and has to be cleaned out off-machine. The current V3800-TIE5HB extends this to a 6,000-hour ash interval.
• SCR variants add DEF service items — DEF quality and level checks, the DEF injector, and NOx sensors.

Host machines publish their own schedules and they take precedence where they differ. For how these intervals fit the wider Kubota industrial line, see the Kubota industrial engine maintenance schedule.

---

Common Problems on the Kubota V3800

Ranked by what to check first, not by what is most dramatic. On the common-rail variants especially, expensive parts get blamed for cheap faults.

1. Low-pressure fuel supply, before anything else. A crank-no-start with no smoke is almost always a rail-supply problem, not compression and not a heater fault. Clogged filters, a failed electric feed pump, and a corroded inline fuse in the harness account for a large share. Diagnose the cheap end first.
2. The suction control valve (SCV) on the Denso HP3 pump. Symptoms are a rail that will not build pressure and rough running under load. Two things matter: it is a duty-cycle solenoid, so bench-testing it on straight 12 volts destroys it, and a replacement requires a Diagmaster learn and calibration. This is the clearest reason a V3800 belongs at a factory-tooled shop rather than a general diesel bay.
3. Cylinder-coded injectors. Denso 095000-9690 / Kubota 1J500-53051. These carry trim codes registered to a specific cylinder. Swapping positions or skipping the coding step causes over-fuelling, then a rough idle, then a plugged DPF. The same injector cross-fits several equipment brands, because the engine underneath is the same V3800.
4. The aftertreatment cascade. One over-fuelling injector loads the DPF faster than regeneration can clear it — failed regens, then a derate, then a DPF replacement nobody needed. Flow-test the injectors before condemning a DPF.
5. Ash loading versus soot loading. Frequent regens and rising differential pressure on a high-hour machine are usually an ash problem — a cleaning interval come due — not a soot problem you can regen your way out of.
6. Turbo, head gasket, and low compression on high-hour Tier 3 units. White smoke with power loss points at rings, valve seating, or a head gasket; heavy black smoke points at over-fuelling or an air restriction.
7. DEF-side faults on SCR variants. DEF injector failures, NOx sensor faults, crystallization, and DEF quality codes.

Working a symptom rather than a code? The Kubota engine troubleshooting guide walks won't-start, overheating, low-power, and smoke from the free checks forward. If there is a number on the display, what Kubota engine error codes mean explains how to read it before you spend anything.

Lehi — contractor, compact track loader, crank-no-start

A grading contractor on a Lehi subdivision had a Kubota-powered track loader that cranked strongly and would not fire, with no smoke at all. The advice already given on site was injectors. The no-smoke detail said otherwise: no smoke means no fuel reaching the cylinders, which points at supply, not combustion. Filters, the feed-pump circuit, and a corroded inline fuse are the first three checks on that symptom, at a fraction of the cost of one coded injector. On a common-rail V3800, working the cheap end first is not a shortcut — it is the correct diagnostic order.

West Jordan — rental fleet, genset regenerating every few hours

A rental yard in West Jordan had a V3800-powered generator set past 3,000 hours demanding regens far more often than the rest of the fleet. Frequent regens with rising differential pressure on a high-hour engine is the ash signature, not the soot signature — soot burns off, ash accumulates and has to be removed off-machine. Check the ash interval against hours before replacing an assembly; a DPF replaced for a cleaning interval is an expensive way to buy back the same hours.

---

Parts: What Wears Out and What to Stock

In rough order of how often they come across the bench:

1. Filters — engine oil, fuel, air element, water separator. The highest-volume category by a wide margin, and the cheapest insurance against everything below it.
2. Fuel system — suction control valve, electric feed pump, cylinder-coded injectors, HP3 pump components.
3. Aftertreatment — DPF service and replacement, DOC, NOx sensors, DEF injectors (SCR variants only).
4. Turbocharger and hoses.
5. Cooling — water pump, thermostat, radiator hoses, fan belt.
6. Gaskets and seals — head gasket, front and rear main seals.
7. Overhaul — in-frame kits, liners, pistons, rings, bearings, cylinder head.

If you run a fleet, stock the top of that list and nothing below it. Filters and a water-separator element per machine turn a downtime event into a lunch break; a spare injector mostly ties up capital, because the coding step means you are not fitting it in a parking lot anyway.

Order the genuine Kubota part against your engine serial number, not the machine model — the same host machine can carry different V3800 variants across model years, and the filter that fits a Tier 3 unit is not automatically right for the Stage V one beside it. Alpine stocks and ships genuine Kubota parts nationwide: see Kubota industrial engine parts online, browse the Kubota parts collection, or request a quote or talk to a Kubota engine specialist with your model and serial.

---

When It's a Rebuild Instead of a Repair

Trade consensus puts a well-maintained V3800 at 8,000 to 12,000 hours before a rebuild — a range, reported as a range, and never a guarantee of any particular engine's life. Fuel quality, load factor, and whether oil changes actually happened at 500 hours move it in both directions.

Hours alone should not decide it. This should:

Situation	Repair	Rebuild / reman	Replace
Hours	Under ~8,000, isolated fault	8,000–12,000 with multiple systems tired	Well past range, or a catastrophic failure
Symptom pattern	One system — an injector, a turbo, a water pump	Low compression across cylinders, oil consumption, blow-by	Block, crank, or catastrophic internal damage
Compression	Even and within spec	Low and uneven across cylinders	Failed cylinder with block damage
Rest of the machine	Sound, worth the investment	Sound, several years of work left in it	Machine itself near end of life
What decides it	Diagnose first — most single faults are repairs	A compression and blow-by test, not a guess	Cost of a rebuild approaching a replacement long block

The test comes before the decision. A compression test and a blow-by check cost a fraction of a rebuild and routinely find that a smoking, low-power engine has one dead injector rather than four tired cylinders. For what a proper rebuild involves and what capability it requires, see inside a Kubota industrial engine rebuild.

Spanish Fork — owner-operator, high-hour Bobcat S850

An owner-operator near Spanish Fork brought in an S850 at roughly 9,400 hours: oil consumption climbing, power down, blow-by at the fill cap. That combination sits in rebuild territory rather than repair territory, because it describes several systems tired at once rather than one part failed. The decision that mattered was the machine's, not the engine's — the loader was sound, with years left in the undercarriage and hydraulics, which is exactly when a rebuilt engine returns the investment. Had the machine been near the end of its own life, the same finding would have pointed the other way.

---

Getting a Kubota V3800 Serviced

The V3800 sits in an awkward gap in the service market. A Kubota tractor dealer generally will not take your Bobcat. A Bobcat dealer is not tooled for the Kubota engine inside it. A general diesel shop can change filters but usually cannot run the calibration a replacement suction control valve requires, or code an injector to a cylinder. So a V3800 with a common-rail fault often gets bounced between three shops before it reaches one with the right software attached to it.

Alpine Equipment is an engine service and parts center, and we service the engine whatever it is bolted into. As the #1 Kubota Industrial Engine service & parts center in the U.S. — a Kubota Industrial Engine Elite Dealer and the sole US recipient of Kubota's 2025 Customer Experience Excellence Award — we run factory Kubota diagnostic tooling, stock genuine parts, and work in-shop in American Fork and in the field across Utah County and Salt Lake County.

Rates: shop service is $145 per hour. Field service is $165 per hour with a two-hour minimum. A diagnosis at that rate is almost always cheaper than one wrong guess at a coded injector or a DPF assembly.

Have these ready when you call in a V3800:

• The full engine model string off the nameplate — V3800-CR-T-E4B, not "V3800"
• The engine serial number (this is what parts are ordered against)
• The host machine make, model, and hour meter
• The exact symptom, and any fault code on the display
• Whether the machine has a DEF tank — it is the fastest way to narrow the variant over the phone

Questions worth asking any shop — use them on us, on the machine dealer, and on the diesel bay down the street. None of them asks a shop to be Alpine. They ask it to say plainly what it can and cannot do on a V3800, which is all you need to route the job correctly.

1. Do you connect Kubota factory diagnostic software to my engine, or read codes off a generic list?
2. Can you perform the learn and calibration a replacement suction control valve requires?
3. Will you code injectors to their cylinders?
4. Do you order parts against my engine serial number, or against the machine model?
5. What is your labor rate, and is there a minimum on a field call?
6. Will you confirm the fault and quote before replacing anything non-diagnostic?

How to read the answers. A shop that answers no to 1, 2, and 3 is not a bad shop — it is a shop that should be doing your filters, hoses, belts, and mechanical work rather than your common-rail diagnosis, and knowing that before you tow anything saves you a week. The answers that should end the conversation are a vague one to 5 or a no to 6.

For how Kubota's dealer tiers work and what separates them, see who the best Kubota industrial engine dealer is and how to tell.

---

Frequently Asked Questions About the Kubota V3800

What is a Kubota V3800 engine?
The Kubota V3800 is a 3.769-liter, four-cylinder, water-cooled, four-cycle industrial diesel sold by Kubota to equipment manufacturers rather than to end users. It is built in outputs from 74.0 kW (99.2 hp) to 96.4 kW and spans EPA Tier 3 through EPA Tier 4 and EU Stage V. You will usually meet it as the engine inside another manufacturer's machine.

What are the specs of a Kubota V3800?
The V3800 displaces 3.769 liters (230 cu in) with a 100 × 120 mm bore and stroke, four cylinders, a 19.0:1 compression ratio, a firing order of 1-3-4-2, and cold valve clearance of 0.23–0.27 mm. Rated output ranges from 74.0 kW to 96.4 kW depending on variant, and dry weight from 275 kg on the Tier 3 version to 423 kg on the Stage V version.

How much horsepower does a Kubota V3800 have?
It depends on the variant: 99.2 hp (74.0 kW) at 2600 rpm on the Tier 3 V3800DI-T-E3B, 99.9 hp on the interim Tier 4 V3800-CR-T-E4B, 115.9 hp on the V3800-TIEF4, and roughly 129–131 hp (96.4 kW) at 2400 rpm on the Stage V variants. Host manufacturers publish their own installed ratings — Takeuchi lists 111.3 hp for the V3800 in the TL12V2.

What equipment uses a Kubota V3800 engine?
Sourced applications include Bobcat S750, S770, S850, T750, T770, T870 and A770 loaders; Kubota SVL90-2, SVL95-2s and SVL97-2 track loaders; the Takeuchi TL12V2; and Gehl CTL85 / Mustang MTL325 track loaders. It is also widely fitted to gensets, air compressors, pumps, horizontal drills, and utility power units. Caterpillar's C3.8 in the 272D2, 299D2 and 299D3 is commonly cross-referenced to the V3800 — verify by casting and serial before ordering parts.

What is the oil capacity of a Kubota V3800?
Kubota's bare-engine figure is 13.2 liters (3.49 US gallons) with the engine-standard oil pan. That number is not universal: host machines change the pan, and Kubota's own SVL95-2s lists 11 liters with filter. Fill to the dipstick and verify against your machine's manual by serial number.

What oil does a Kubota V3800 take?
API service classification CF or better — CF-4, CG-4, CH-4 or CI-4 on low-sulfur fuel. Use SAE 10W-30 or 15W-40 between 0 °C and 25 °C, SAE 30 above 25 °C, and 10W below 0 °C. On high-sulfur fuel, use an oil with a total base number of 10 or higher.

What's the difference between the V3800-DI-T, V3800-CR-TE4, and V3800-TIEF4?
The difference is emissions generation and fuel system. The V3800DI-T-E3B is Tier 3 with mechanical direct injection and no aftertreatment at all. The V3800-CR-T-E4B is interim Tier 4 with common-rail injection and a DOC plus DPF, but still no DEF. The V3800-TIEF4 adds SCR on top, which means it does require DEF. They share a block and displacement but not a service profile.

Does a Kubota V3800 need DEF?
Only the SCR-equipped variants do. The Tier 3 V3800DI-T-E3B and the interim Tier 4 V3800-CR-T-E4B use no DEF. The V3800-TIEF4, V3800-CR-TIEF4H and V3800-TIE5HB run SCR and require it — the current TIE5HB is specified with a 20-liter DEF tank kit. Check the nameplate string, or check whether the machine has a DEF fill.

What is the firing order on a Kubota V3800?
The firing order on a Kubota V3800 is 1-3-4-2. Rotation is counter-clockwise viewed from the flywheel end.

What is the valve clearance on a Kubota V3800?
Cold valve clearance on the V3800 is 0.23–0.27 mm (0.009–0.011 in), intake and exhaust. Kubota's schedule calls for it to be checked every 1,000 hours. Confirm against the service manual for your engine serial number before adjusting.

What are the most common Kubota V3800 problems?
On common-rail variants the most frequent faults are low-pressure fuel supply issues (clogged filters, a failed electric feed pump, a corroded harness fuse), suction control valve failures on the Denso HP3 pump, and cylinder-coded injector problems that lead to DPF plugging. On high-hour Tier 3 units the pattern shifts to turbochargers, head gaskets, and low compression. A crank-no-start with no smoke is a supply problem far more often than an injector problem.

How many hours will a Kubota V3800 last, and when should it be rebuilt?
Trade consensus puts a well-maintained V3800 at roughly 8,000 to 12,000 hours before a rebuild, though fuel quality, load factor, and oil-change discipline move that range considerably. Hours alone should not trigger the decision — low, uneven compression across cylinders, oil consumption, and blow-by together are what indicate a rebuild rather than a repair. Test before deciding.

---

Servicing a Kubota V3800 in Utah

Start with the variant. The full nameplate string tells you whether you have a mechanical Tier 3 engine with no aftertreatment, a common-rail engine with a DPF, or an SCR engine with a DEF tank — and that one fact determines the filters, the fluids, the diagnostic path, and half the parts you would otherwise order wrong. Then work the cheap end of the diagnosis first, and verify every capacity against your own machine's manual by serial number.

Past that point it becomes a tooling question. Alpine Equipment is a Kubota Industrial Engine Elite Dealer running the factory diagnostic software these engines require — in-shop in American Fork and in the field across Utah County and Salt Lake County, with genuine Kubota parts shipped nationwide. Bring the engine model, serial number, hour meter, and symptom, and request a quote or talk to a Kubota engine specialist.
