Kubota V2403-DI Industrial Engine: Service, Parts & Specs
By the Alpine Equipment service team · Reviewed by Alpine's Kubota-certified industrial engine technicians · American Fork, UT · Updated July 2026
Key Takeaways
- The Kubota V2403 is a 2,434 cc (148.5 cu in), four-cylinder, vertical water-cooled diesel with an 87.0 × 102.4 mm bore and stroke, built in rated outputs from 36.5 kW (48.9 hp) to 48.6 kW (65.2 hp).
- It is a family, not a single engine. Ten published designations cover seven physically different engines — indirect injection, mechanical direct injection, and common rail, naturally aspirated, turbocharged, and turbo-intercooled.
- Two Tier 4 Final variants have no DPF at all. The V2403-CR-TIE4 and V2403-CR-TI-E4-BG meet EPA Tier 4 Final with a diesel oxidation catalyst only — no particulate filter, no regeneration cycle, nothing to force-regen.
- No V2403 variant uses SCR, and none requires DEF. The whole family sits under the 56 kW threshold where Kubota is permitted the simpler aftertreatment route.
- The numbers a technician asks for first: firing order 1-3-4-2, rotation counter-clockwise from the flywheel, cold valve clearance 0.18–0.22 mm (0.0071–0.0086 in) on both valves, checked every 800 hours.
- Oil capacity depends on which pan the engine was built with: 7.6 L (2.0 US gal) with the 90 mm pan, 9.5 L (2.5 US gal) with the 124 mm pan. Kubota publishes no coolant capacity for a bare V2403 — the radiator belongs to the host machine. Verify both against your machine's manual by serial number.
- Where to get it serviced: Alpine Equipment is a Kubota Industrial Engine Elite Dealer running factory diagnostic tooling, working in-shop in American Fork and in the field across Utah County and Salt Lake County, with genuine Kubota parts shipped nationwide.
The Kubota V2403 is a 2.434-liter, four-cylinder, vertical water-cooled industrial diesel built in rated outputs from 36.5 kW (48.9 hp) to 48.6 kW (65.2 hp), spanning the Tier 2 era through EPA Tier 4 Final and EU Stage V. Almost nobody buys one. You inherit it, already bolted into a compact excavator, a track loader or a generator set, and you go looking for it the day it stops — which is the worst possible moment to discover the next sentence. The one thing to know before ordering a part or booking a repair: "V2403" names ten published designations and seven physically different engines, and they do not share a service profile.
That is where nearly every V2403 search goes wrong. Spec aggregators publish one flattened "V2403" block, so a search returns one horsepower figure, one oil quantity, and one aftertreatment assumption — and at least one of the three will be wrong for the engine in front of you. Alpine Equipment — the #1 Kubota Industrial Engine service & parts center in the U.S., and a Kubota Industrial Engine Elite Dealer. We service and supply genuine parts for the V2403 regardless of the badge on the machine around it, in-shop in American Fork and in the field across Utah County and Salt Lake County. If you already know what you need, request a quote or talk to a Kubota engine specialist.
What the Kubota V2403 Is
The Kubota V2403 is a vertical, water-cooled, four-cycle, four-cylinder industrial diesel of 2,434 cm³, sold by Kubota Engine America to equipment manufacturers rather than to end users. Depending on generation it uses Kubota's spherical E-TVCS indirect injection, mechanical direct injection (-DI-), or common-rail injection (-CR-), with rated output from 36.5 kW to 48.6 kW.
Three of those terms decide almost everything else, so in plain English: indirect injection (E-TVCS) sprays fuel into a small swirl chamber above the piston rather than straight at it — quieter, more tolerant of poor fuel, and the reason those engines need glow plugs to start cold. Direct injection sprays into the cylinder itself, which is more efficient and fussier about nozzles. Common rail replaces the mechanical pump with a high-pressure fuel rail and electronic injectors, which is what makes the later engines cleaner, and what makes them require specific oil, specific fuel, and a laptop to diagnose properly. Aftertreatment is anything in the exhaust that cleans it up on the way out — a catalyst, a filter, or both.
Where you will find it: compact excavators in the 4- to 5-tonne class, compact track loaders and skid steers, mobile generator sets, air compressors, pumps, welders, and utility power units — almost always wearing another manufacturer's paint.
Kubota V2403 Specs at a Glance
These are the constants — the figures that hold across the whole V2403 family. What changes between variants is in the next section; what changes between host machines is in the fluids section below.
| Spec | Value |
|---|---|
| Configuration | Vertical, water-cooled, 4-cycle, 4-cylinder diesel |
| Displacement | 2,434 cm³ / 2.434 L (148.5 cu in) |
| Bore × stroke | 87.0 × 102.4 mm (3.43 × 4.031 in) |
| Firing order | 1-3-4-2 |
| Rotation | Counter-clockwise viewed from the flywheel side |
| Valve clearance (cold) | 0.18–0.22 mm (0.0071–0.0086 in), intake and exhaust alike |
| Valve-clearance check interval | Every 800 hours |
| Fan-belt tension | 7–9 mm (0.28–0.35 in) deflection at 98 N (10 kgf / 22 lbf) |
| Compression ratio | Varies by variant — 23.2:1 on the E-TVCS engines down to 16.0:1 on common rail |
Rated output, torque, dry weight, idle and maximum speed, compression ratio, and every piece of emissions equipment move with the variant, so they are deliberately not on this table. The figures above come from Kubota's workshop manual for the 03-M / 03-M-DI / 03-M-E3BG series and Kubota's V2403-CR-TIE4 operator's manual (1J778-89157). Confirm against the manual for your engine serial number before machining, torquing, or ordering.
Kubota V2403 Variants Decoded
Search results treat "V2403" as one engine. Kubota built it as a family, and the differences are not cosmetic — they change the combustion system, the fuel required, the aftertreatment, and what a technician has to plug into it.
Reading the suffix. Kubota's designations are legible once you know the pattern — and Kubota's own model-number guide shows where the string is stamped: M = mechanical injection pump · CR = common rail · DI = direct injection, and its absence on an -M engine means E-TVCS indirect injection · T = turbocharged · TI = turbocharged and intercooled · E2 / E3 / E4 / E5 = the emissions certification generation · B = a build or spec revision · BG = the generator-drive build. A trailing -BC-5 or -BC-4 is the equipment manufacturer's application code, not Kubota's. Match the full string on the nameplate, not just "V2403."
| Variant | Combustion & fuel system | Emissions | Aftertreatment | DPF? | DEF? | What it changes for service |
|---|---|---|---|---|---|---|
| V2403-M | E-TVCS indirect injection, DENSO in-line mini pump, natural | Tier 2/3 era | None | No | No | Simplest of the family. Symptom-based diagnosis, no electronics in the fuel path. |
| V2403-M-T | E-TVCS indirect injection, in-line pump, turbo | Tier 2/3 era | None | No | No | Adds the turbo service items — shaft play, oil feed and return lines. |
| V2403-M-T-E3B | Indirect injection, in-line pump, turbo | Interim Tier 4, EU Stage IIIA | None | No | No | Certified generation, mechanically the same engine to work on. |

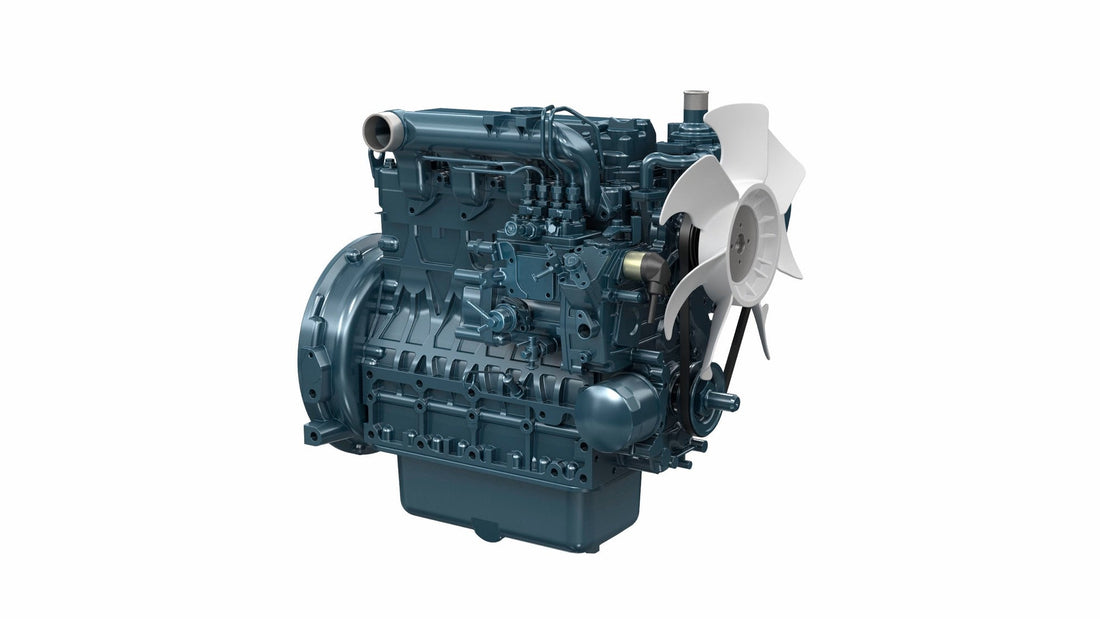

| V2403-M-DI | Reentrant direct injection, Bosch "K" in-line mini pump, natural | Tier 2/3 era | None | No | No | Different nozzles, different opening pressures, different compression spec than the E-TVCS engines. |
| V2403-M-DI-E3B | Direct injection, in-line pump, natural | Interim Tier 4, EU Stage IIIA | None | No | No | The Bobcat E45 engine. Tier 4-era, and still no filter to service. |
| V2403-M-DI-T / -T-E3B | Direct injection, in-line pump, turbo | Interim Tier 4, EU Stage IIIA | None | No | No | The Bobcat E50 engine. Mechanical, turbocharged, no aftertreatment. |
| V2403-CR-T-E4B | Direct injection, common rail, turbo | Tier 4, EU Stage IIIB and Stage V | DOC + DPF | Yes | No | Common rail and a particulate filter arrive together. Regeneration and ash service become live items. |
| V2403-CR-TIE4 | Direct injection, common rail, turbo + aftercooled | Tier 4 Final | DOC only | No | No | Tier 4 Final with no filter and no regeneration cycle at all. |
| V2403-CR-TI-E4-BG | Direct injection, common rail, turbo + aftercooled, generator drive | Tier 4 | DOC only | No | No | Same DOC-only story on the genset build. |
| V2403-CR-E5 | Direct injection, common rail, natural | Tier 4, EU Stage V | DOC + DPF | Yes | No | Stage V with a filter, without a turbo. |
Two findings come straight off that table, and both contradict what the rest of the internet says about this engine.
First: the V2403-CR-TIE4 and V2403-CR-TI-E4-BG meet EPA Tier 4 Final with a diesel oxidation catalyst only — no diesel particulate filter, no regeneration cycle, and no DEF. A regeneration is the periodic burn-off that clears trapped soot out of a particulate filter; with no filter fitted there is nothing to burn off and no cycle to run. Aggregator pages collapse "Tier 4" into "has a DPF," which is a safe generalization on larger engines and simply false here. If someone tells you a -CR-TIE4 needs a forced regen, they are describing a component the engine does not have.
Second: no V2403 variant uses SCR, and none requires DEF. Rated power across the whole family runs 30.2 to 48.6 kW, under the 56 kW threshold in the EPA's nonroad diesel standards where Kubota is permitted the simpler route. There is no DEF tank, no DEF injector, and no NOx-sensor branch anywhere in this family.
That is worth stating plainly because the habit runs the other way on Kubota's larger engines. On the 3.8-liter V3800, whether the machine takes DEF genuinely does depend on the variant — some of that family runs SCR and a DEF tank. A shop that learned its rules on a V3800 will misread a V2403. If you are not certain which engine you have, our guide to identifying the Kubota engine in your equipment shows where the model and serial plates live.
Which Machines Run a Kubota V2403
Host applications are where bad information travels fastest, because parts sellers publish brand lists nobody sources. Every row below carries a source strength; anything that could not be traced to an equipment manufacturer's own document is either hedged or absent.
| Host machine | V2403 designation as printed | Source strength |
|---|---|---|
| ASV VT-70 / V235T compact track loader | ENGINE KUBOTA V2403T 48.5kW, ASV part 2031-082 | Strong — ASV VT-70 / V235T Master Parts Manual, part no. 0404-695. Cross-checked as a V2403-CR-TIE4: Tier 4 Final via DOC, no DPF, no regeneration, no DEF |
| Bobcat E45 compact excavator | Kubota / V2403-M-DI-E3B-BC-5, 4-cyl, 2,433 cm³, 30.2 kW net | Strong — Bobcat E45 specification sheet |
| Bobcat E50 compact excavator | Kubota / V2403-M-DI-T-E3B-BC-4, 4-cyl, 2,433 cm³, 35.4 kW net, 179.5 N·m | Strong — Bobcat E50 specification sheet |
| Multiquip / MQ Power WhisperWatt DCA40SSKU4F and DCA40SSKU4F2 generator sets | Kubota V2403-CR-TIE4BG, 148.5 cu in, 49 hp @ 1,800 rpm, turbo with EGR and DOC | Strong — Multiquip DCA40SSKU4F2 generator data sheet |
| Tier 2-era Bobcat loaders (S185 / S205 / T180 / T190) | Turbo V2403 — Bobcat sells a reman V2403T for Tier 2 Bobcat loaders, part 6683201REM | Partial — the reman part confirms a turbo V2403 in Tier 2 Bobcat loaders, but the specific model list comes from reman and parts catalogs, not a Bobcat specification sheet. Verify by nameplate before ordering |
| Generator sets, air compressors, pumps, welders, utility power units | V2403 industrial and BG generator-drive configurations | Strong for the category, not for specific models. The -BG build exists precisely for constant-speed generator drive |
Commonly assumed, but not a V2403
Several pairings circulate constantly in forum threads and aftermarket listings. These ones are wrong, and the correct engine is published:
- The JLG G5-18A telehandler does not run a Kubota V2403. It is published as Perkins or Deutz powered.
- SkyTrak telehandlers do not run a V2403. No model in the range is Kubota-powered in this class.
- Genie S-45, Z-45 and GTH-5519 do not run a V2403. The Genie S-45 is Deutz D2.9L4 powered.

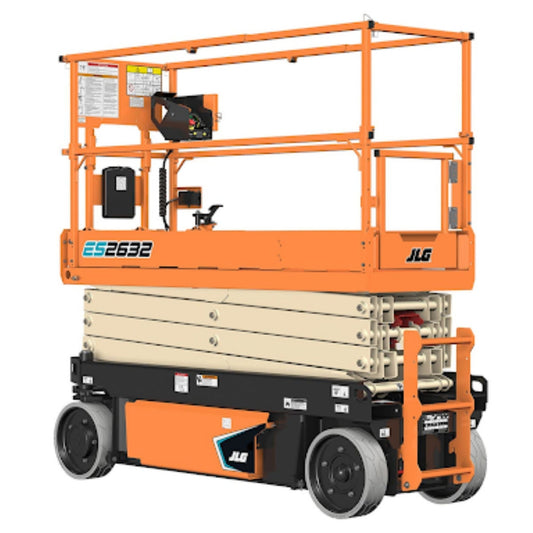

Alpine is an authorized JLG and Genie repair facility. We can work on those machines, and we still will not print a Kubota engine into one that does not have it. Being able to service a machine is not a reason to misstate what is inside it — and a customer who orders V2403 parts for a Deutz-powered boom lift has lost a week for no reason.
The Cat C2.4 question is different — it is unproven rather than disproven. The Caterpillar C2.4 shares the V2403's bore, stroke, and displacement, which is suggestive and is not proof. No Caterpillar-published document names Kubota as the source. Treat cross-interchange as unverified: do not assume a Kubota part number fits a C2.4, and order against the engine serial number and the casting in front of you rather than against an internet equivalence.
A long tail of further machines gets listed against the V2403 on vendor-blog sourcing alone. None of those are printed here, because none could be traced to a document the manufacturer published. A brand list is a category signal, not a fitment.
Kubota V2403 Oil Capacity and Fluids
| Fluid | Figure | Notes |
|---|---|---|
| Engine oil — mechanical engines | 7.6 L (2.0 US gal) with the 90 mm oil pan · 9.5 L (2.5 US gal) with the 124 mm oil pan | Two pans, two correct answers. Identify the pan before filling |
| Engine oil — common rail (-CR-TIE4) | 9.5 L (2.51 US gal) | Operator's manual oil-quantity table |
| Oil specification — mechanical | API CF or better | Viscosity by ambient temperature |
| Oil specification — common rail | API CJ-4 required | Not interchangeable with the mechanical recommendation. 10W-30, 10W-40 or 15W-40 above −10 °C; 10W-30 or 10W-40 below |
| Fuel — mechanical | Diesel No. 2-D (ASTM D975) | |
| Fuel — common rail | No. 2-D S15 ultra-low-sulfur mandatory, ≤15 ppm sulfur, cetane 45 or higher | Not a recommendation. Higher-sulfur fuel damages the aftertreatment and the injection system |
| Coolant | Kubota publishes no bare-engine figure | See below |
Now the part every spec aggregator gets wrong by inventing a number. Neither the Kubota workshop manual nor the V2403-CR-TIE4 operator's manual publishes a coolant capacity for a bare V2403, and that is not an omission — the radiator belongs to the host machine, not to the engine. A "V2403 coolant capacity" figure on a spec-scraper site was either lifted from one particular machine or invented outright.
The honest version is machine-level and labelled as such: the Bobcat E50 specification sheet lists a cooling system of 8.30 L and engine lubrication including the oil filter at 7.10 L — for that machine, with that radiator and that pan. Note that the E50's oil figure sits between Kubota's two bare-engine pan capacities, which is exactly why a single published number cannot be trusted across machines.
Treat 7.6 L and 9.5 L as the engine-level reference, then fill to the dipstick against your machine's own manual, matched to its serial number. A capacity published without that context is how crankcases get overfilled.
Kubota V2403 Service Intervals
The schedule below is Kubota's own, split the way the engine is actually split — mechanical on the left, common rail on the right. The differences are small in isolation and add up to two genuinely different maintenance plans.
| Item | Mechanical V2403-M / -M-DI | Common rail V2403-CR-TIE4 |
|---|---|---|
| First oil and filter change | 50 h | 50 h |
| Engine oil + oil filter cartridge | 200 h (90 mm pan) / 400 h (124 mm pan) | 400 h |
| Clean air-cleaner element | 100 h (replace after 6 cleanings) | 100 h (replace after 6 cleanings) |
| Fuel filter cartridge | 400 h | 500 h |
| Water separator | Clean fuel filter element at 100 h | Drain at 50 h, clean at 500 h |
| Radiator hoses and intake air line check | 200 h | 200 h |
| Clean water jacket and radiator interior | 500 h | 500 h |
| Fan belt replacement | 500 h | 500 h |
| Valve clearance check | 800 h | 800 h |
| Injection nozzle / injector tip check | 1,500 h | 1,500 h |
| Oil separator element | — | 1,500 h |
| Turbocharger and injection pump check | 3,000 h | — |
| PCV valve and EGR system check | — | 3,000 h |
| Air-cleaner element replacement | 1 year | 1 year |
| Coolant (long-life) change | 2 years | 2 years |
| Fuel hoses, radiator hoses, clamps, intake line | 2 years | 2 years |
The fuel filter is the cleanest illustration that "V2403 maintenance" is not one schedule: 400 hours on the mechanical engine, 500 on the common rail, same displacement, same block.
Kubota marks several of these items "consult your local Kubota dealer," and classifies the injector tip, EGR cooler, oil separator, PCV valve, turbocharger and EGR system as EPA emission-related critical parts. That is a factual reason to route those specific items to a shop with the tooling and the parts access, not a warranty statement. For how these intervals sit alongside the rest of the Kubota industrial line, see the Kubota industrial engine maintenance schedule.
Common Problems on the Kubota V2403
Ranked by what to check first, not by what is most dramatic. These are reported patterns from service work, owner forums and Kubota's own critical-parts list — not manufacturer defect statements — and on this engine the expensive parts get blamed for cheap faults with tiring regularity.
- The fuel shut-off solenoid circuit. The single most common no-start on the mechanical V2403, and it is usually not the engine at all — corroded or loose pins at the solenoid connector, or a failed relay upstream of it. Check it before anything with a part number attached.
- The glow-plug circuit. Hard cold starts and white smoke on start-up. Test the feed wire before condemning plugs, then test plugs individually rather than as a set.
- Injector nozzles. Black smoke, rough running and lost power on high-hour mechanical engines. Kubota's own schedule calls for an injector-tip check at 1,500 hours, which is roughly where these start showing up.
- Cooling-system neglect, then overheating. Kubota asks for the water jacket and radiator interior to be cleaned at 500 hours and the coolant changed every two years. Both are among the most-skipped items on the list, and overheating on a small four-cylinder is an expensive way to learn that.
- Turbocharger wear on -T and -TI builds. Shaft play and oil-seal leakage, usually downstream of stretched oil changes or a restricted air cleaner rather than a turbo defect. Kubota's check interval is 3,000 hours.
- DPF regeneration trouble — on -CR-T-E4B and -CR-E5 only. Light-duty idling never gets the filter hot enough to complete a regeneration, and the result is warning lamps, forced regens, and eventually a derate — the engine deliberately cutting its own power because the emissions system is blocked, not because anything is broken. This does not apply to the DOC-only -CR-TIE4 or -CR-TI-E4-BG. Establish which engine you have before spending anything on this symptom.
- Engine runaway after injection-pump work. A mis-set pump rack pin, reported often enough to be a pattern. It is the clearest argument that the injection pump is not a driveway job.
Working a symptom rather than a code? The Kubota engine troubleshooting guide walks won't-start, overheating, low-power and smoke from the free checks forward. If there is a number on a display, what Kubota engine error codes mean explains how to read it before you spend anything.
Pleasant Grove — contractor, Bobcat E50, crank-no-start
A site contractor in Pleasant Grove had a compact excavator that cranked strongly and would not fire, with no smoke at the stack. The advice already given on site was injectors. The no-smoke detail argued against it: no smoke means no fuel reaching the cylinders, which points at delivery, not combustion. On a mechanical V2403-M-DI-T-E3B, the first three checks on that symptom are the fuel shut-off solenoid connector, the relay feeding it, and the fuel filter — all of them cheaper than the diagnosis, let alone an injector set. Working the cheap end first is not a shortcut; it is the correct order.
Riverton — rental fleet, WhisperWatt genset "needing a regen"
A rental yard in Riverton had a WhisperWatt DCA40 generator set flagged over the phone as needing a forced DPF regeneration. That set runs a V2403-CR-TIE4BG, and there is no DPF on it — it meets Tier 4 Final with a diesel oxidation catalyst and has no regeneration cycle to force. A week went into chasing a component the engine does not have while the actual fault — an ordinary air and fuel supply problem under sustained load — sat untouched. This is the variant table earning its place: the first question on any V2403 complaint is which V2403.
Parts: What Wears Out and What to Stock
In rough order of how often they come across the bench:
- Filters — engine oil cartridge, fuel filter cartridge, water separator element, air-cleaner element. The highest-volume category by a wide margin and the cheapest insurance against everything below it.
- Fuel system — fuel shut-off solenoid and its relay, glow plugs and the glow-plug feed wire, injector nozzles.
- Cooling — thermostat, water pump, radiator hoses and clamp bands, fan belt.
- Turbocharger — cartridge and the oil feed and return lines, on -T and -TI builds only.
- Gaskets and seals — head gasket, front and rear main seals.
- Overhaul — in-frame kits, pistons, rings, bearings, cylinder head.
If you run a fleet, stock the top of that list and nothing below it. A filter set and a spare fuel shut-off solenoid per machine turn a downtime day into a lunch break. A spare turbo mostly ties up capital.
Order the genuine Kubota part against your engine serial number, not the machine model. The same host model carries different V2403 variants across model years, and a filter that fits a mechanical -M-DI-E3B is not automatically right for the common-rail unit parked beside it. Alpine stocks and ships genuine Kubota parts nationwide: see Kubota industrial engine parts online, browse the Kubota parts collection, or request a quote or talk to a Kubota engine specialist with your model and serial.
When It's a Rebuild Instead of a Repair
"How many hours will a V2403 last" is the wrong question, and Kubota never answers it — no rated service life is published, because fuel quality, load factor and whether the oil actually got changed on schedule move the answer by thousands of hours in both directions.
Kubota does publish the measurement that decides it. Cranking compression at 290 rpm:
| Engine | Compression, new | Service limit | Between cylinders |
|---|---|---|---|
| E-TVCS (indirect injection) | 3.24–3.72 MPa (470–540 psi) | 2.55 MPa | 10% maximum spread |
| Direct injection | 2.95–3.23 MPa (427–469 psi) | 2.35 MPa | 10% maximum spread |
An engine below its service limit, or with more than a 10% spread between cylinders, is telling you something an hour meter cannot. That is the number to gather before making the decision:
| Situation | Repair | Rebuild | Replace |
|---|---|---|---|
| Symptom pattern | One system — a solenoid, a nozzle, a turbo, a water pump | Low compression across cylinders, oil consumption, blow-by at the fill cap — combustion pressure escaping past worn piston rings and puffing out of the oil-filler opening | Block, crank, or catastrophic internal damage |
| Compression | Even and within spec | Below service limit, or over 10% spread | Failed cylinder with block damage |
| Rest of the machine | Sound, worth the investment | Sound, several years of work left in it | Machine itself near end of life |
| What decides it | Diagnose first — most single faults are repairs | A compression and blow-by test, not a guess | Cost of a rebuild approaching a replacement long block |
The test comes before the decision. A compression test and a blow-by check cost a fraction of a rebuild and routinely find that a smoking, low-power engine has one bad nozzle rather than four tired cylinders. For what a proper rebuild involves and the capability it requires, see inside a Kubota industrial engine rebuild.
Payson — owner-operator, high-hour ASV VT-70
An owner-operator near Payson brought in a V2403-powered track loader with oil consumption climbing, power down, and visible blow-by at the fill cap. That combination describes several systems tired at once rather than one part failed, which is rebuild territory rather than repair territory — but the compression numbers had to say so first, and they did: below the direct-injection service limit on two cylinders with well over a 10% spread. The decision that mattered after that was the machine's, not the engine's. The loader was sound, with years left in the undercarriage and hydraulics, which is exactly when a rebuilt engine returns the investment. Had the machine been near the end of its own life, the same finding would have pointed the other way.
Getting a Kubota V2403 Serviced
The V2403 sits in an awkward gap in the service market. A Kubota tractor dealer generally will not take your Bobcat. A Bobcat dealer is not tooled for the Kubota engine inside it. A general diesel shop can change filters but often cannot tell you, on the phone, whether the engine in front of it has a particulate filter at all. So a V2403 with an ordinary fault gets bounced between shops before it reaches one that starts by reading the nameplate.
Alpine Equipment is an engine service and parts center, and we service the engine whatever it is bolted into. As the #1 Kubota Industrial Engine service & parts center in the U.S. — a Kubota Industrial Engine Elite Dealer and the sole US recipient of Kubota's 2025 Customer Experience Excellence Award — we run factory Kubota diagnostic tooling, stock genuine parts, and work in-shop in American Fork and in the field across Utah County and Salt Lake County.
What that does not include. Alpine works on the engine, not the machine wrapped around it. Undercarriage, hydraulics, booms, cab electronics and the host machine's own controller belong with your machine dealer — and so does anything being claimed under a machine or engine warranty, because a service and parts center is not a warranty administrator. That boundary cuts both ways in the customer's favor: a Bobcat dealer knows that excavator's hydraulics better than any engine shop will, and a competent general diesel shop can do routine filters, fluids and belts perfectly well, usually closer to home and often for less. The narrow case where an industrial engine dealer earns the trip is the one this article is about — a variant-specific fault, a part that has to be right the first time, or a diagnosis nobody else will put their name to.
Rates: shop service is $145 per hour. Field service is $165 per hour with a two-hour minimum. A diagnosis at that rate is almost always cheaper than one wrong guess at an injector set or a filter that turns out not to exist.
Have these ready when you call in a V2403:
- The full engine model string off the nameplate — V2403-M-DI-T-E3B, not "V2403"
- The engine serial number (this is what parts are ordered against)
- The host machine make, model, and hour meter
- The exact symptom, and any fault code on the display
- Whether the machine has a diesel particulate filter, and which oil pan it was built with — the two fastest ways to narrow the variant without seeing it
Questions worth asking any shop, Alpine included:
- Which V2403 variant do you think this is, and what on the machine tells you that?
- Do you have the Kubota workshop manual for this specific series, or a generic spec table?
- Will you confirm the fault and quote before replacing anything non-diagnostic?
- Can you source genuine Kubota parts against the engine serial number rather than the machine model?
For how Kubota's dealer tiers work and what separates them, see who the best Kubota industrial engine dealer is and how to tell.
Frequently Asked Questions About the Kubota V2403
What machines use the Kubota V2403 engine?
Sourced applications include the ASV VT-70 / V235T compact track loader, the Bobcat E45 and E50 compact excavators, and Multiquip WhisperWatt DCA40SSKU4F and DCA40SSKU4F2 generator sets. Bobcat also sells a reman turbo V2403 for its Tier 2-era loaders, which confirms the engine family in those machines without confirming a model list. The V2403 is also widely fitted to compressors, pumps, welders and utility power units, generally wearing another manufacturer's paint.
What are the Kubota V2403 engine specs?
The V2403 is a four-cylinder, vertical, water-cooled, four-cycle diesel of 2,434 cm³ (148.5 cu in) with an 87.0 × 102.4 mm bore and stroke, a firing order of 1-3-4-2, and counter-clockwise rotation viewed from the flywheel. Cold valve clearance is 0.18–0.22 mm on both intake and exhaust. Rated output runs from 36.5 kW (48.9 hp) to 48.6 kW (65.2 hp), and compression ratio ranges from 23.2:1 on the E-TVCS engines to 16.0:1 on common rail, both depending on variant.
How much oil does a Kubota V2403 take?
It depends on the oil pan the engine was built with: 7.6 litres (2.0 US gallons) with the 90 mm pan and 9.5 litres (2.5 US gallons) with the 124 mm pan. The common-rail V2403-CR-TIE4 takes 9.5 litres (2.51 US gallons). Host machines can change the pan, so fill to the dipstick and verify against your machine's manual by serial number.
What does the "M," "DI," "CR," "T" and "TI" mean on a Kubota V2403?
M means a mechanical injection pump and CR means common rail; DI means direct injection, and its absence on an M engine means Kubota's E-TVCS indirect injection; T means turbocharged and TI means turbocharged and intercooled. E2, E3, E4 and E5 mark the emissions certification generation, B is a build revision, and BG is the generator-drive build. A trailing code such as -BC-5 belongs to the equipment manufacturer, not to Kubota.
What is the difference between the V2403-M-DI and the V2403-CR?
The M-DI uses a mechanical in-line injection pump with direct injection and carries no aftertreatment; the CR uses common-rail injection and carries at least a diesel oxidation catalyst. The practical differences are the ones that cost money: the CR requires API CJ-4 oil and mandatory S15 ultra-low-sulfur fuel, and its fuel filter interval is 500 hours against the mechanical engine's 400. Compression ratio also drops from around 20.5:1 on the M-DI to 16.0:1 on common rail.
Does the Kubota V2403 have a DPF or need DEF?
No V2403 variant uses SCR and none requires DEF. Whether it has a diesel particulate filter depends entirely on the variant: the V2403-CR-T-E4B and V2403-CR-E5 run a DOC plus DPF, while the V2403-CR-TIE4 and V2403-CR-TI-E4-BG meet Tier 4 Final with a diesel oxidation catalyst only — no filter and no regeneration cycle. Every mechanical variant has no aftertreatment at all.
What is the valve clearance and firing order on a Kubota V2403?
The firing order is 1-3-4-2 and cold valve clearance is 0.18–0.22 mm (0.0071–0.0086 in) on both intake and exhaust. Rotation is counter-clockwise viewed from the flywheel side. Kubota's schedule calls for the valve clearance to be checked every 800 hours; confirm against the workshop manual for your engine serial number before adjusting.
What are the most common Kubota V2403 problems?
On mechanical engines the most frequently reported faults are the fuel shut-off solenoid circuit, the glow-plug circuit, and worn injector nozzles, followed by cooling-system neglect leading to overheating and turbocharger wear on the T and TI builds. On the DPF-equipped common-rail variants, incomplete regeneration from light-duty idling is the recurring complaint. Engine runaway after injection-pump work shows up often enough to be a pattern rather than an accident.
Why won't my Kubota V2403 start?
On a mechanical V2403, the most common cause of a crank-no-start is the fuel shut-off solenoid circuit — corroded connector pins or a failed relay — not the engine itself. If it cranks strongly with no smoke at all, fuel is not reaching the cylinders, which points at supply rather than compression or injectors. Check the solenoid connector, its relay, and the fuel filter before spending anything.
How many hours will a Kubota V2403 last?
Kubota publishes no rated service life, and any specific hour figure you find online is someone's estimate rather than a manufacturer number. What Kubota does publish is the measurement that decides it: cranking compression at 290 rpm should be 3.24–3.72 MPa on the E-TVCS engines and 2.95–3.23 MPa on direct injection, with service limits of 2.55 and 2.35 MPa and no more than a 10% spread between cylinders. Test rather than guess — fuel quality, load factor and oil-change discipline move the real answer enormously.
Is the Cat C2.4 the same engine as the Kubota V2403?
It is unproven either way. The Caterpillar C2.4 shares the V2403's bore, stroke and displacement, which is suggestive but is not proof, and no Caterpillar-published document names Kubota as the source. Do not assume parts interchange between them: order against the engine serial number and the casting in front of you rather than an internet equivalence.
What oil does a Kubota V2403 require?
Mechanical V2403 engines call for API service classification CF or better, with viscosity chosen by ambient temperature. The common-rail V2403-CR-TIE4 requires API CJ-4 and mandatory No. 2-D S15 ultra-low-sulfur fuel at 15 ppm sulfur or less — 10W-30, 10W-40 or 15W-40 above −10 °C, and 10W-30 or 10W-40 below it. The two specifications are not interchangeable.
Servicing a Kubota V2403 in Utah
Start with the variant. The full nameplate string tells you whether you have an indirect-injection mechanical engine, a direct-injection mechanical engine, a common-rail engine with a particulate filter, or a common-rail engine with nothing but a catalyst — and that one fact determines the oil, the fuel, the filters, the intervals, and half the parts you would otherwise order wrong. Then work the cheap end of the diagnosis first, and verify every capacity against your own machine's manual by serial number rather than a spec-scraper page.
Past that point it is a question of who holds the workshop manual for your specific series — which is the whole job of the #1 Kubota Industrial Engine service & parts center in the U.S. Bring the engine model string, serial number, hour meter, and symptom, and request a quote or talk to a Kubota engine specialist.
Alpine Equipment — Kubota Industrial Engine Elite Dealer
349 S 100 W, American Fork, UT 84003
Serving Utah County & Salt Lake County · Kubota OEM parts shipped nationwide
